Pool Piolt® Features :-
• Maintains pools up to 20,000 gallons
• Produces 0.8 lbs. of chlorine per day
• Patented temperature compensation
• 24 & 72 hour boost cycles
• Operates at all salt levels - 2,000-35,000 ppm (2 to 35 g/L)
• Operates in water up to 104ºF/40ºC
• Push button controls
• Operates at flow rates less than 15 gpm

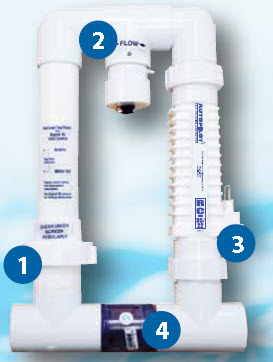

1. In-line Strainer - The in-line strainer protects the Tri-Sensor and the Cell from debris that may by-pass the filter and obstruct either component. The location of the strainer in the connecting union makes it easy to remove for periodic cleaning.

2.Tri-Sensor - The tri-sensor is a three way sensing device which measures flow, salt level, and water temperature.

3. Chlorine Production Cell - The cell produces 100% pure Sodium Hypochlorite in your pool plumbing returning it to your pool.

4. Check Valve - The check valve in the Manifold allows all water flowing through the plumbing at a rate greater than 20 gallons per minute to by-pass the production cell to maximize the production of chlorine.

click image for more details
